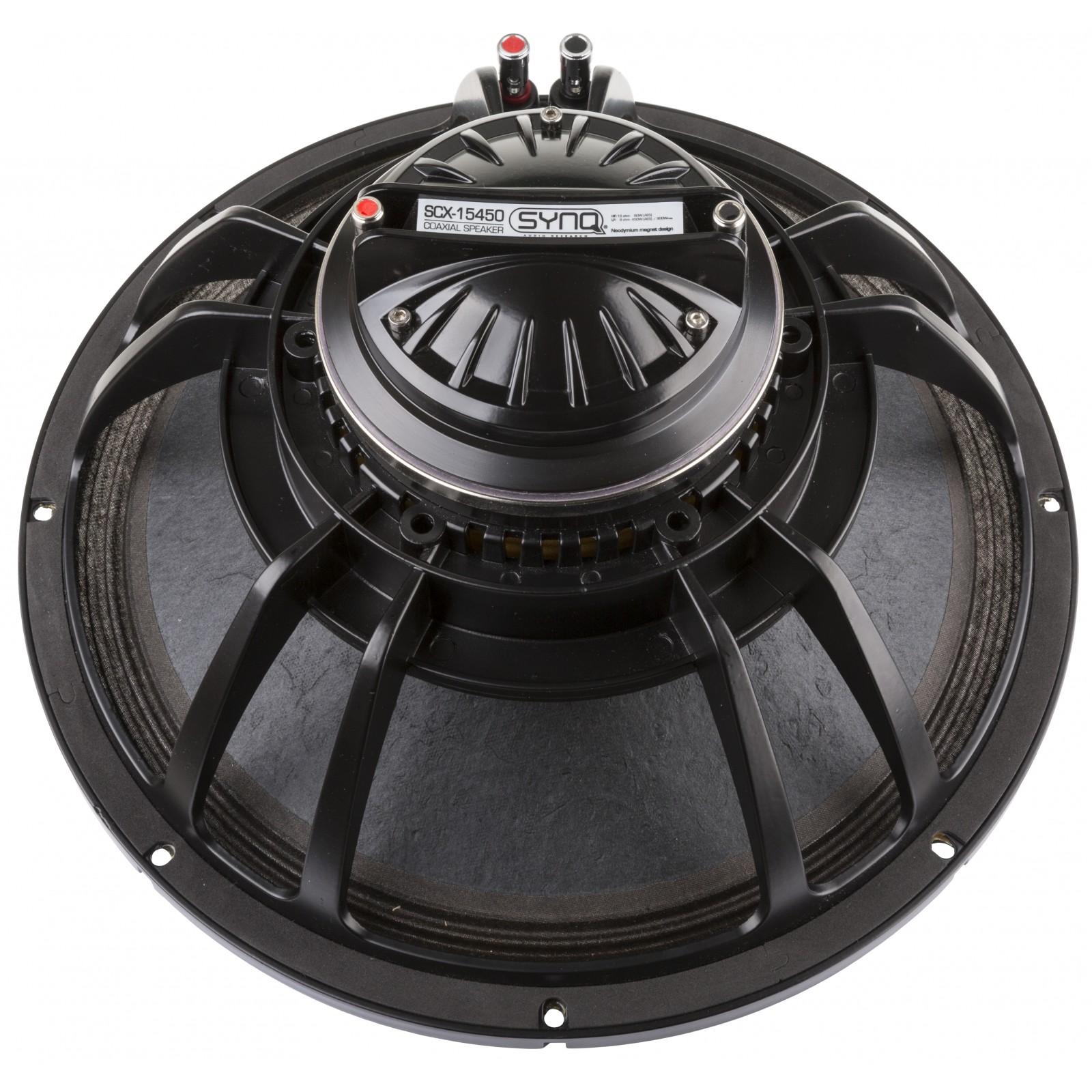

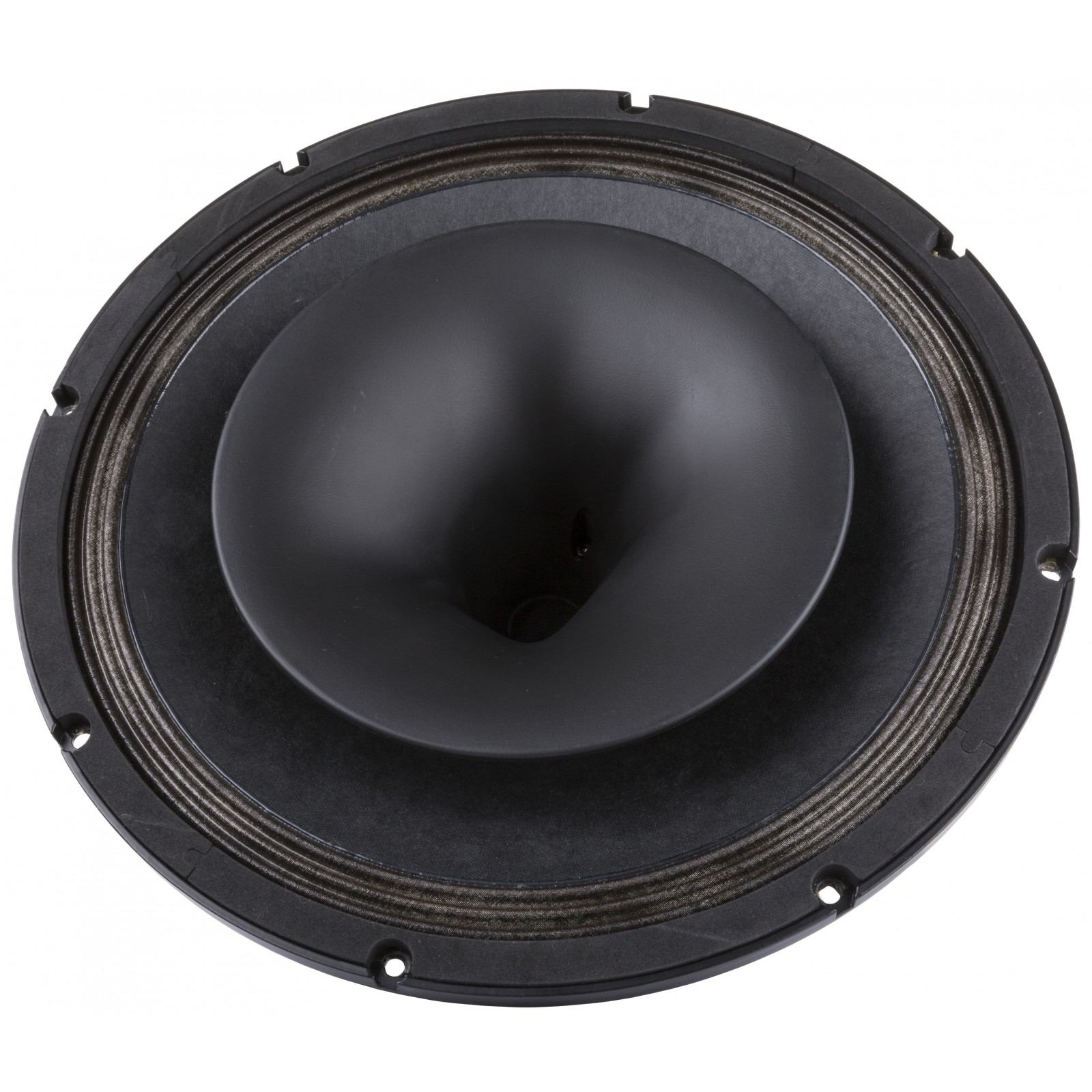

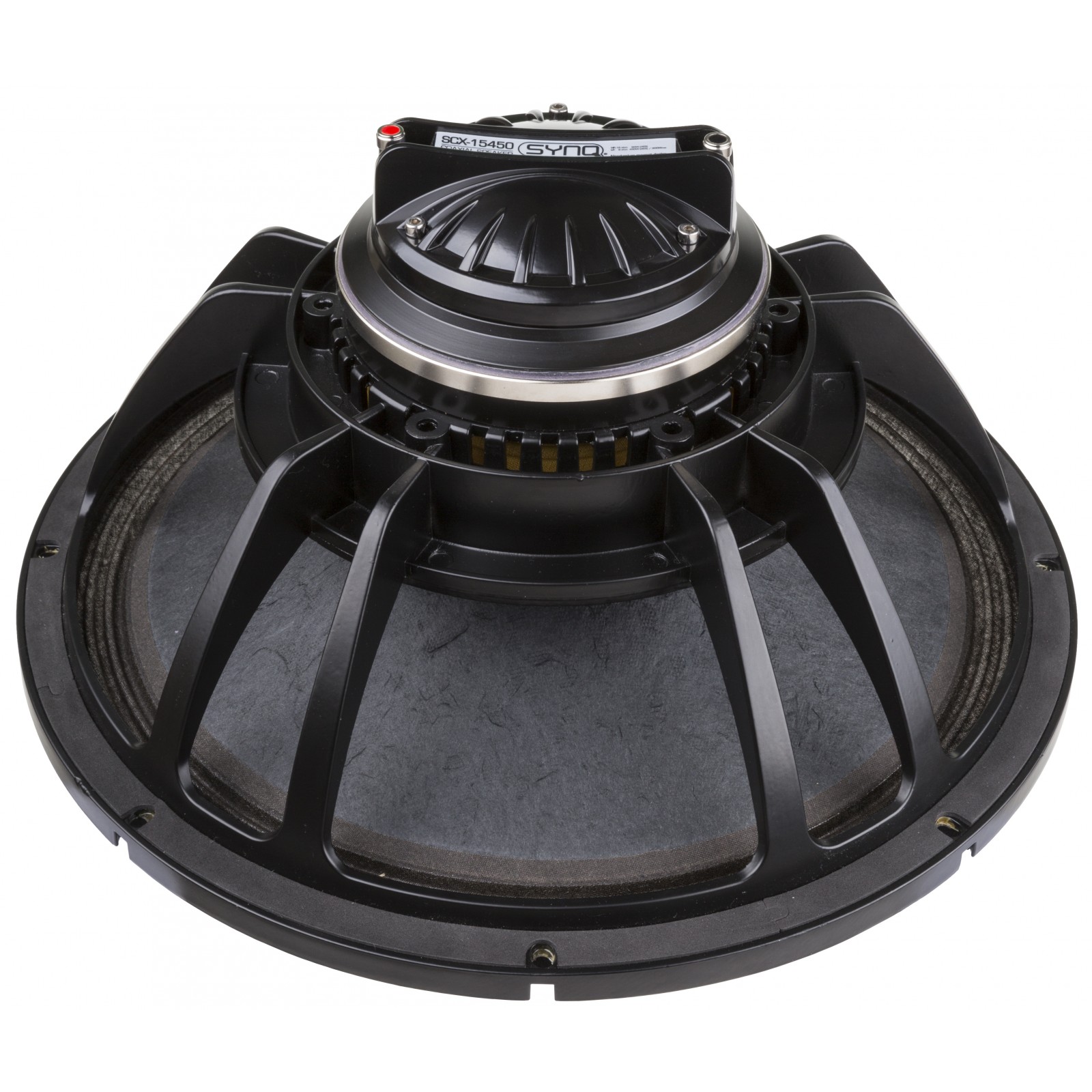

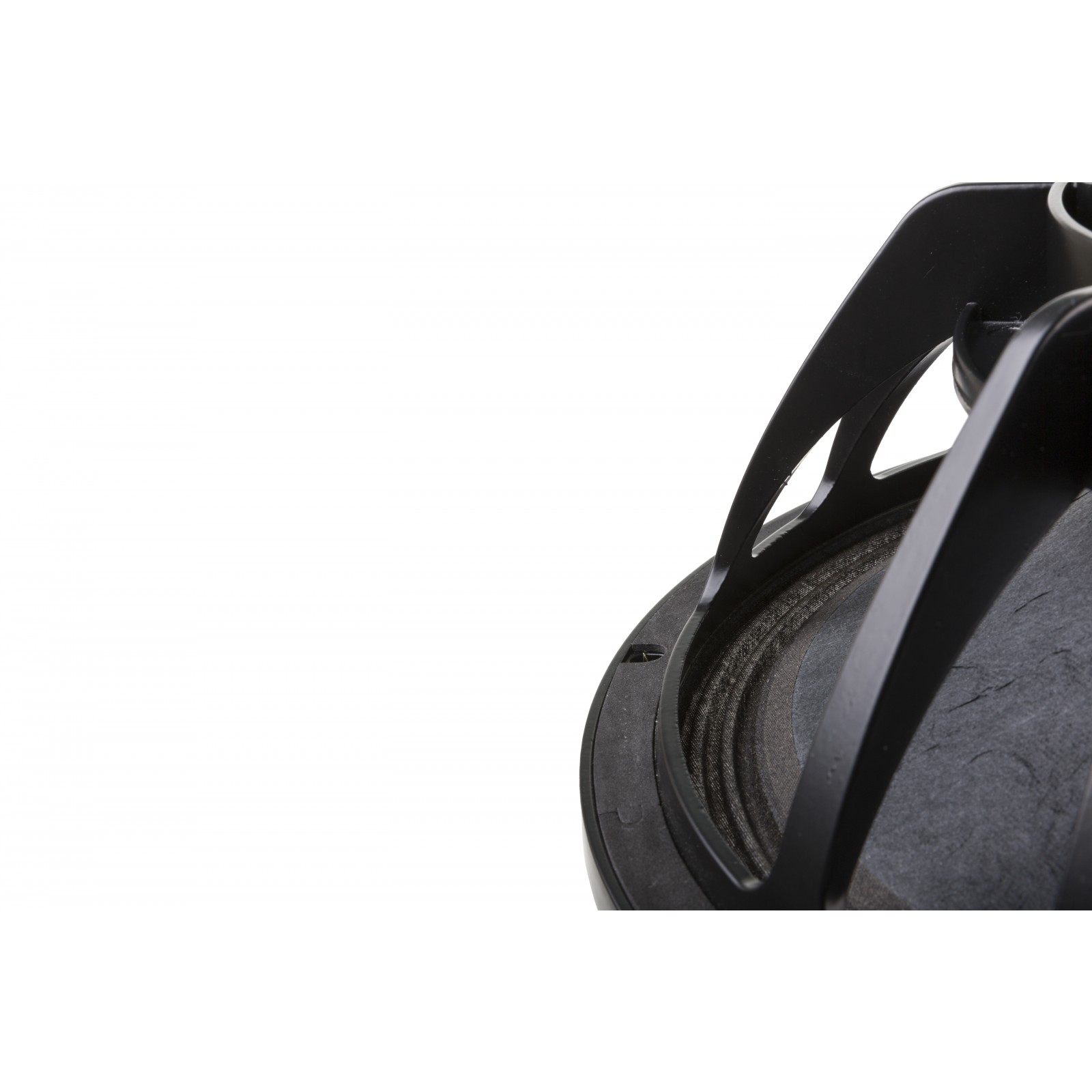

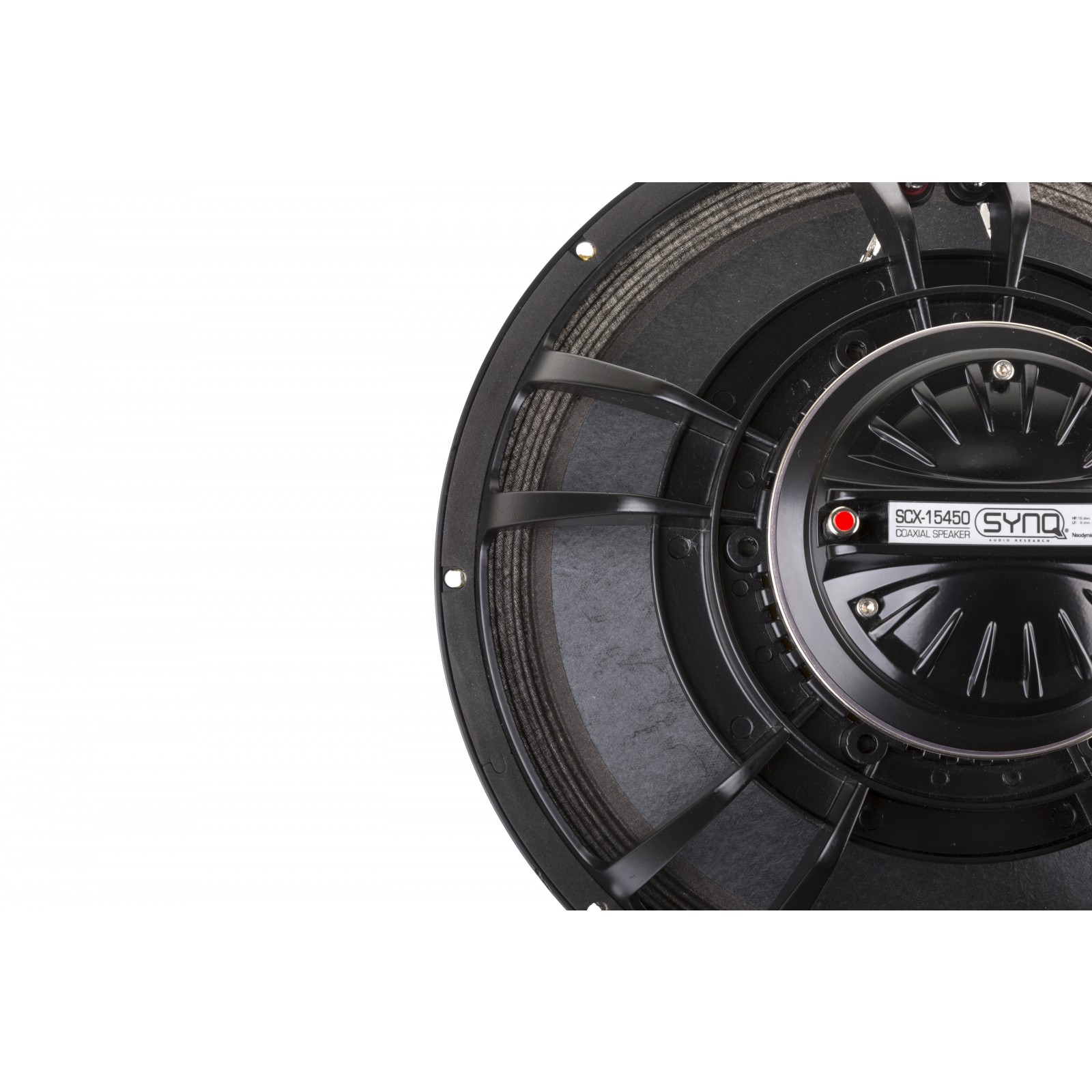

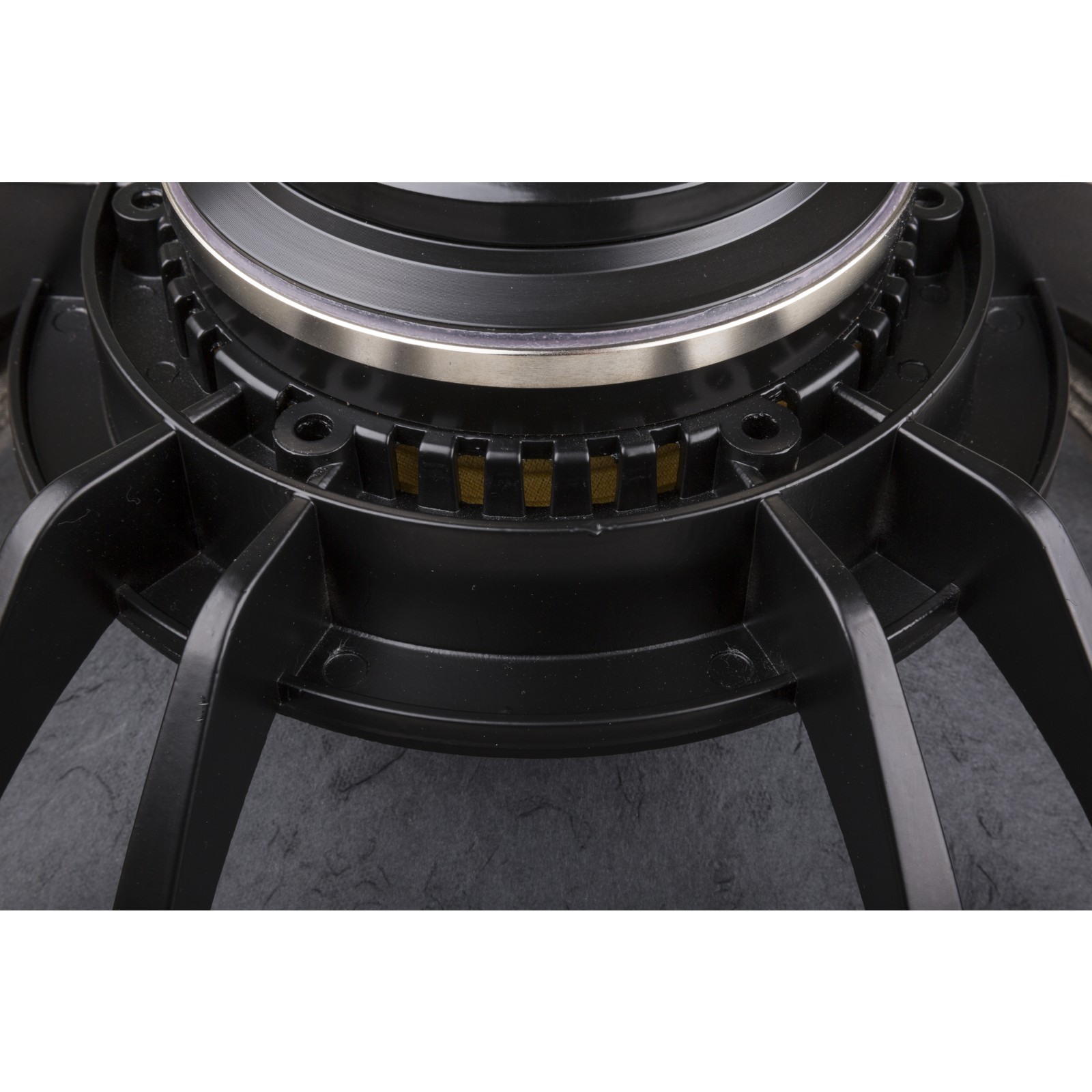

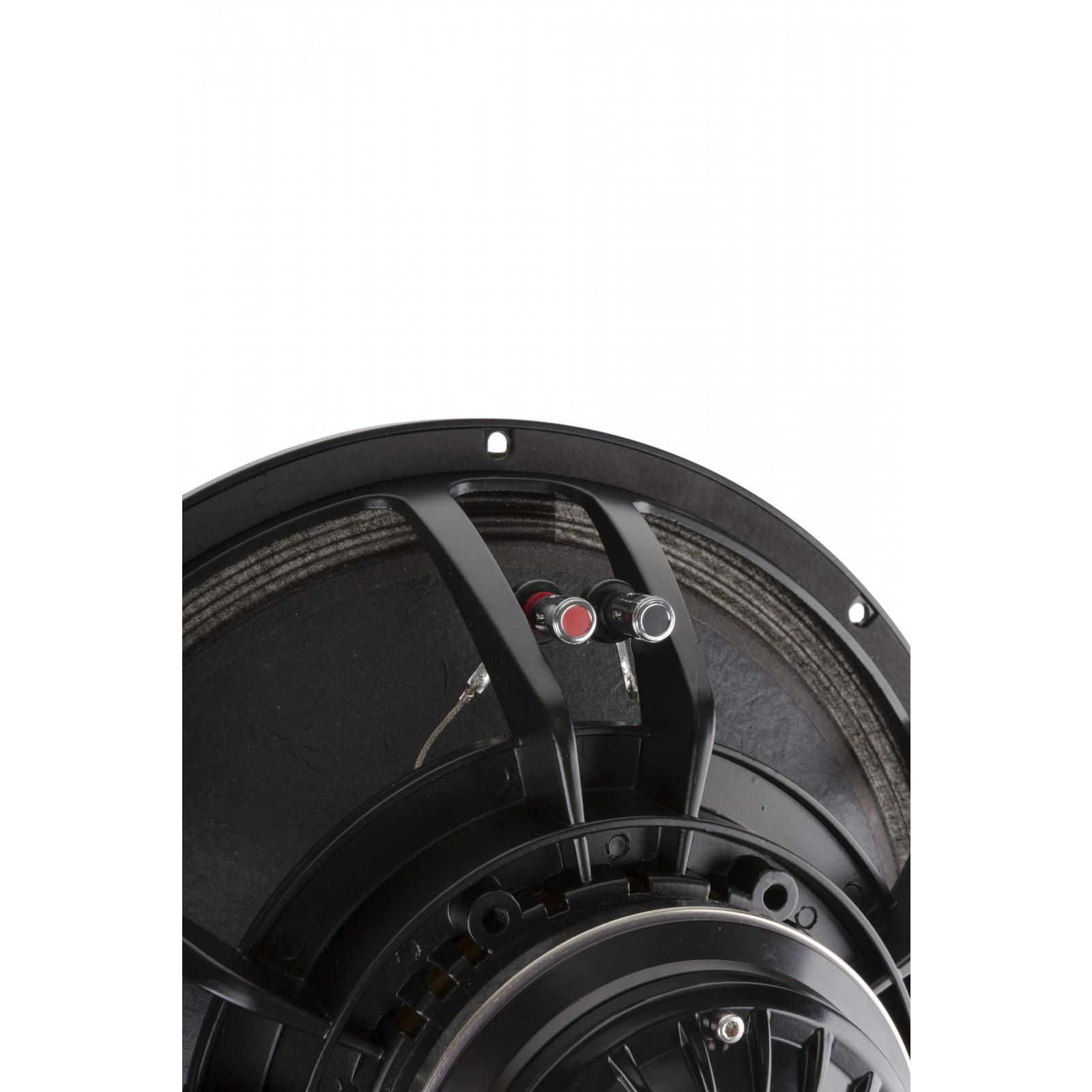

SCX-15450

Leistungsstarker 15 koaxial Lautsprecher 60 x 40 mit 450 W + 60 W

• Power handling capacity W(AES): 450
• Max power Watts: 900
• Nominal impedance LF/HF Micro: 8/16
• Frequency range Hz: 50-19K
• LF :
  • Sensitivity (1W/1m) dB: 99.5
  • Voice coil diameter mm/in: 75.5/3
  • Fs Hz: 50
  • Re Micro: 5.5
  • Qms : 4.50
  • Qes : 0.41
  • Qts : 0.38
  • Vas L: 119
  • Mms gr: 88
  • Cms mm/N: 0.11
  • BL Tm: 19.2
  • Xmax mm: 5.0
• HF :
  • Throat diameter mm/in.: 35/1.4
  • Power handling capacity W(AES): 60
  • Nominal impedance Micro: 16
  • Sensitivity (2.83V/1m) dB: 106
  • Frequency range Hz: 1K-18K
  • Voice coil diameter mm/in: 44.4/1.75
  • Re Micro: 11
• Notes :
  • AES power is measured with 6dB crest factor continuous pink noise in 2 hours duration.
  • Max power is defined as 3dB higher than the nominal rating.
  • Sensitivity is measured at one meter at 2.83V and 8 ohm nominal impedance.
  • All measurement of the speaker is done after a sufficient high level of 20Hz sine wave test.
  • Xmas is defined at the BL drops by 18% of the original figure.
